Flooring - Pedestal paving

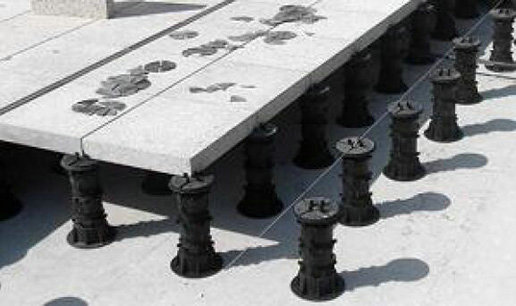

Pedestal paving, is a new popular paving way for stone and tile in all over the world, widely used for many indoor and outdoor places, such like landscape, plaza, path, booth and office.

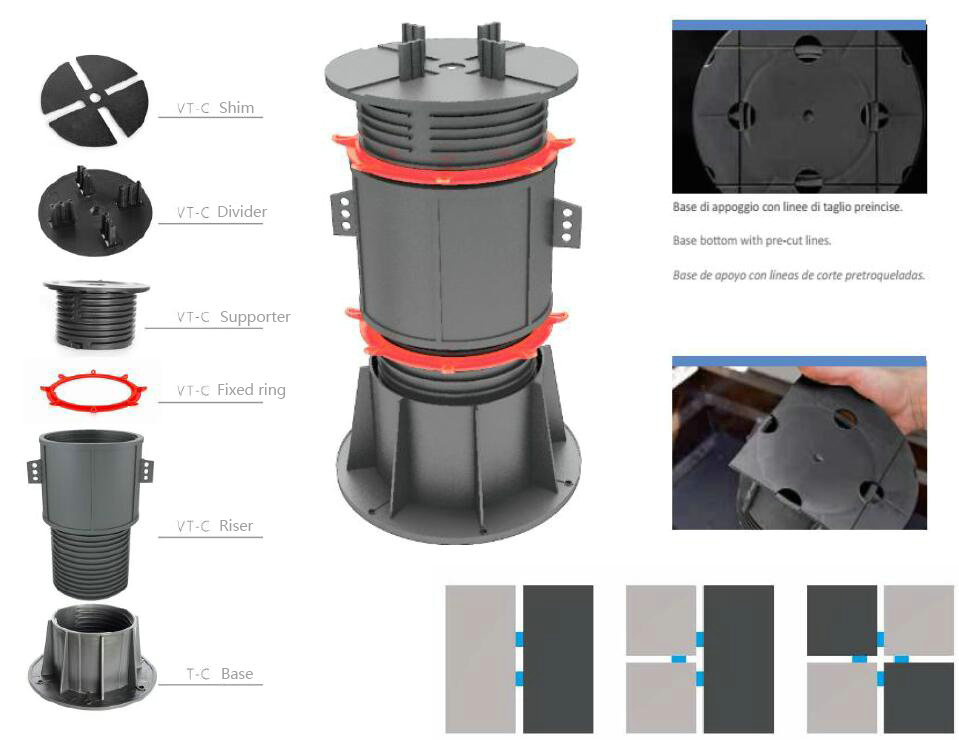

Pedestal paving accessories1 - Pedestal





Material: PP polypropylene

Adjustable range: 12.5-1200mm

Working temperature: -35°C-100°C

Product life: 30 years

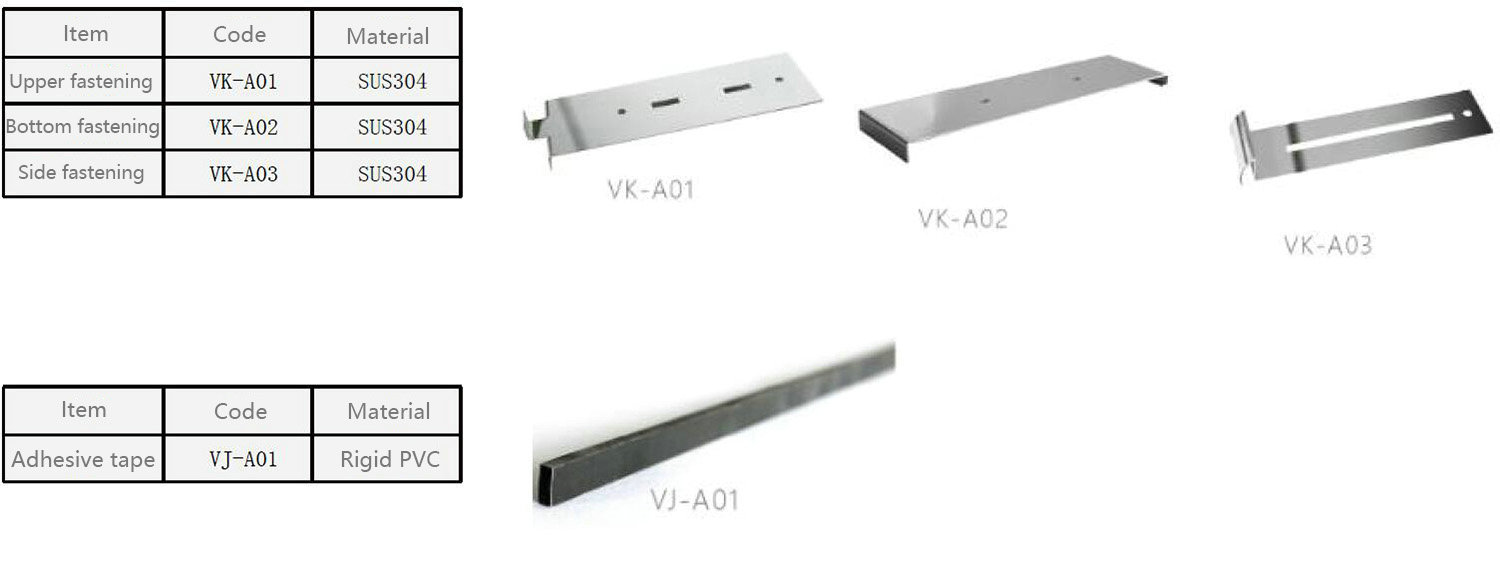

Pedestal paving accessories1 - Fastening, adhesive tape

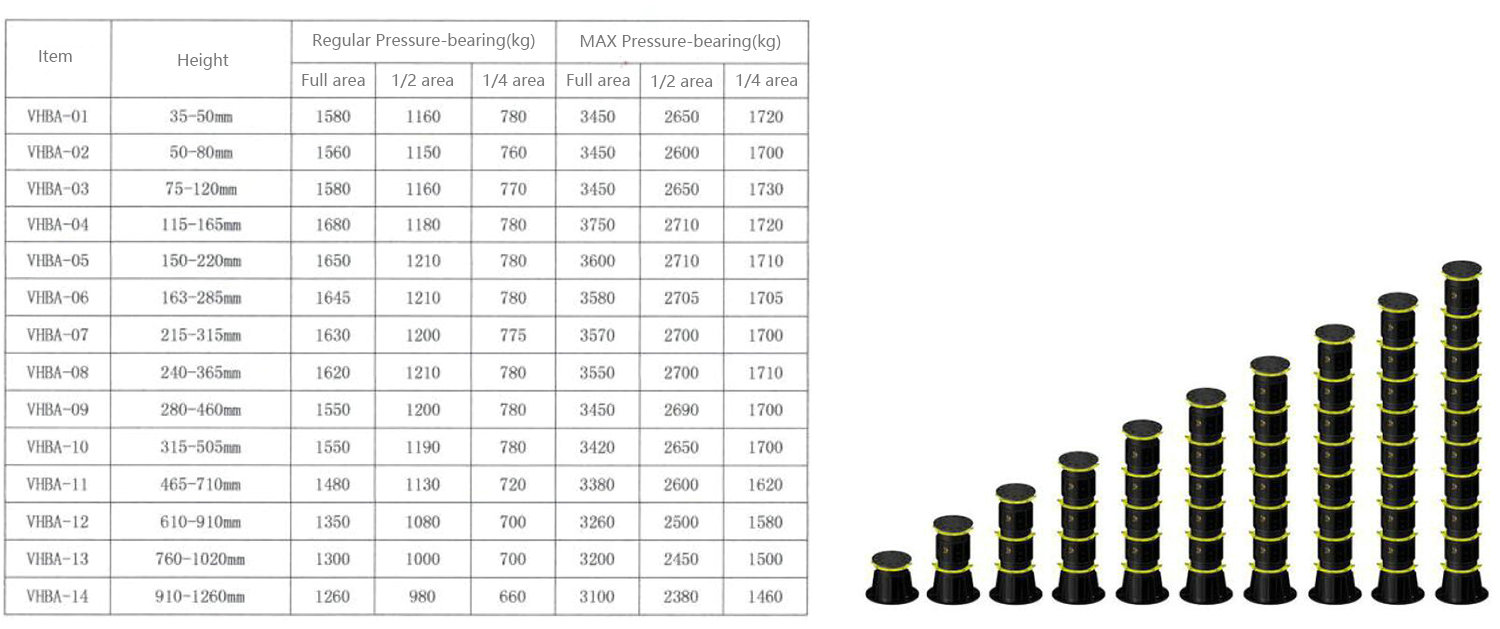

Regular sizes and load






Pedestal required quantity








Paving Steps:

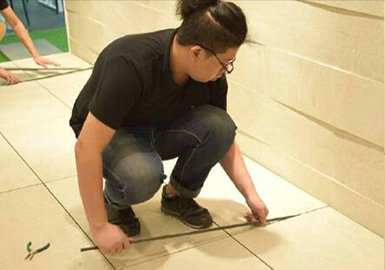

1. Find the pedestal paving spot according to design, and adjust all height to meet the requirement.



2. Pave tiles, use spirit level to adjust the level of the 1st tile(install fountain before pedestal in landscaping).

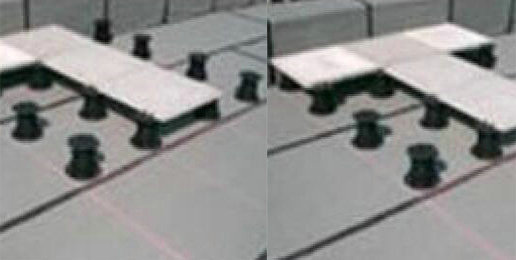

3. Repeat Step #2, pave tile according to "T" paving order.



4. Keep paving till end, adjust the level anytime if needed.

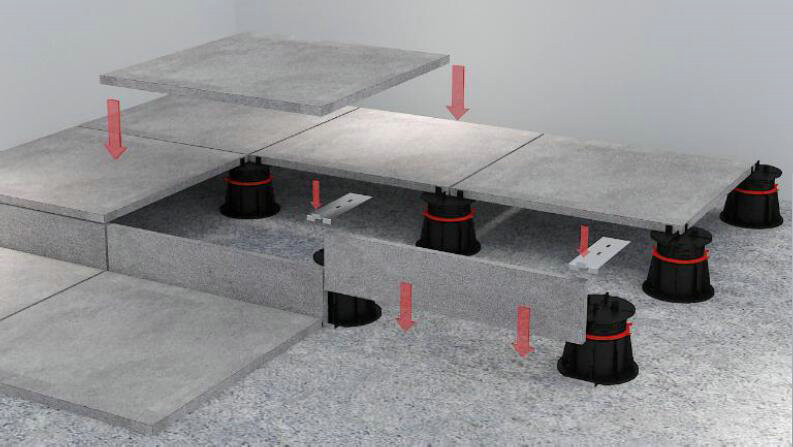

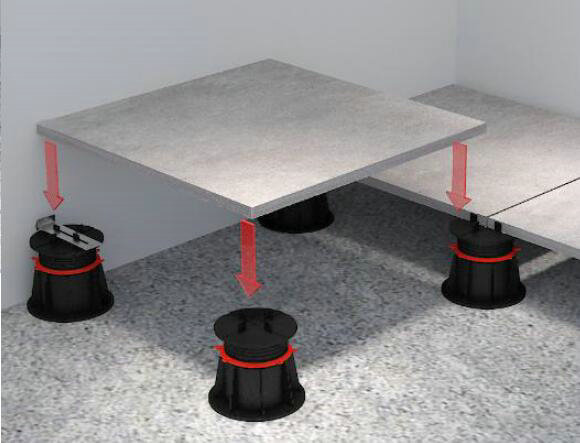

Pedestal System Assembling

Step: Introduction for upper and bottom fastening.





Wall: Introduction for side fastening.

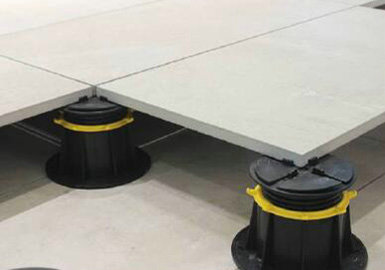

Office/Showroom indoor Pedestal System

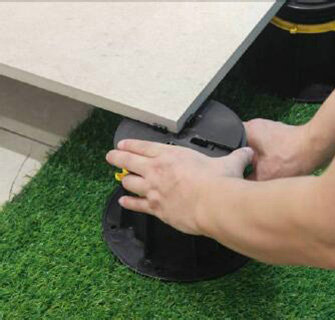

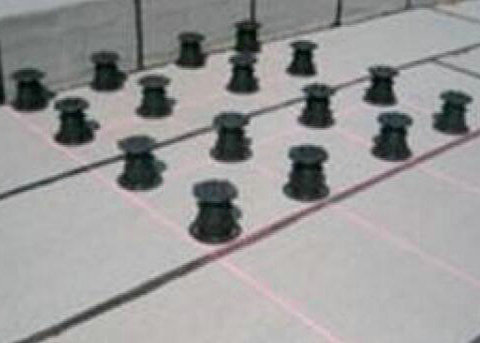

Adjust the height of pedestal

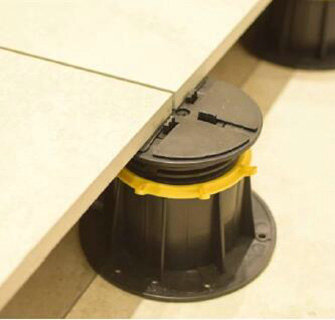

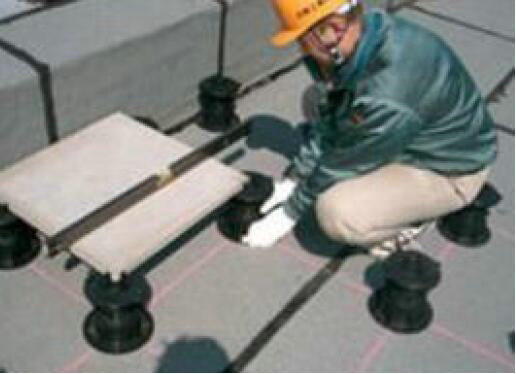

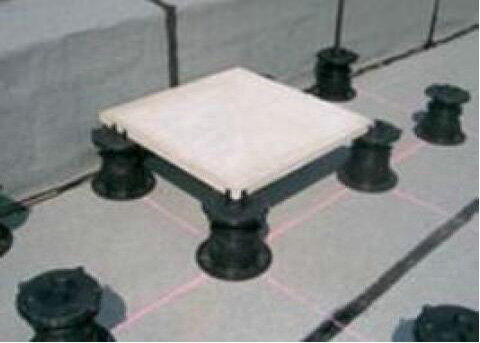

Pedestal under adjacent tiles

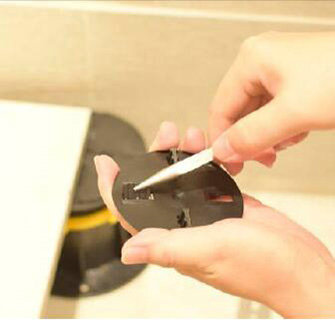

Remove unnecessary divider

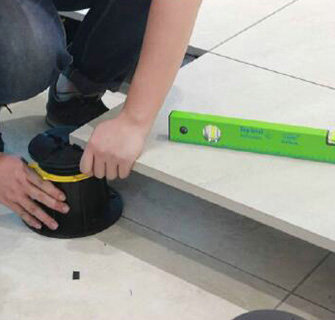

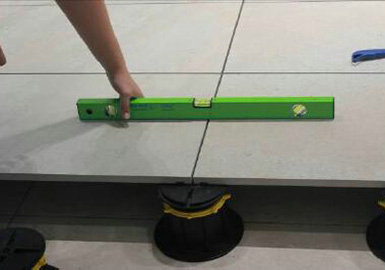

Use spirit level

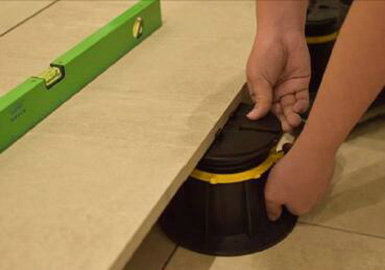

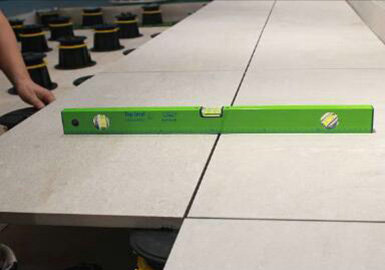

Adjust level for adjacent tiles

Adjust level for adjacent tiles

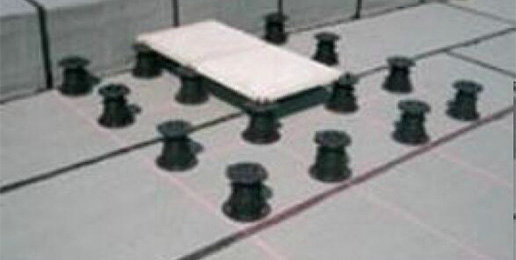

Add more pedestal

According to "T" paving order

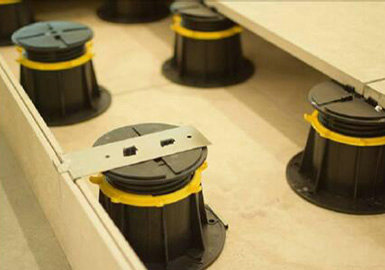

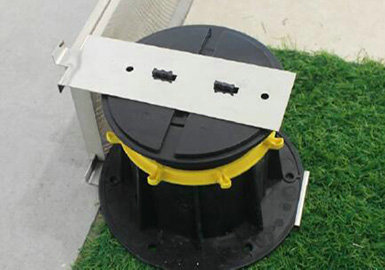

Assemble upper and bottom fastening

Assemble upper and bottom fastening

Assemble adhesive tape

Finish paving

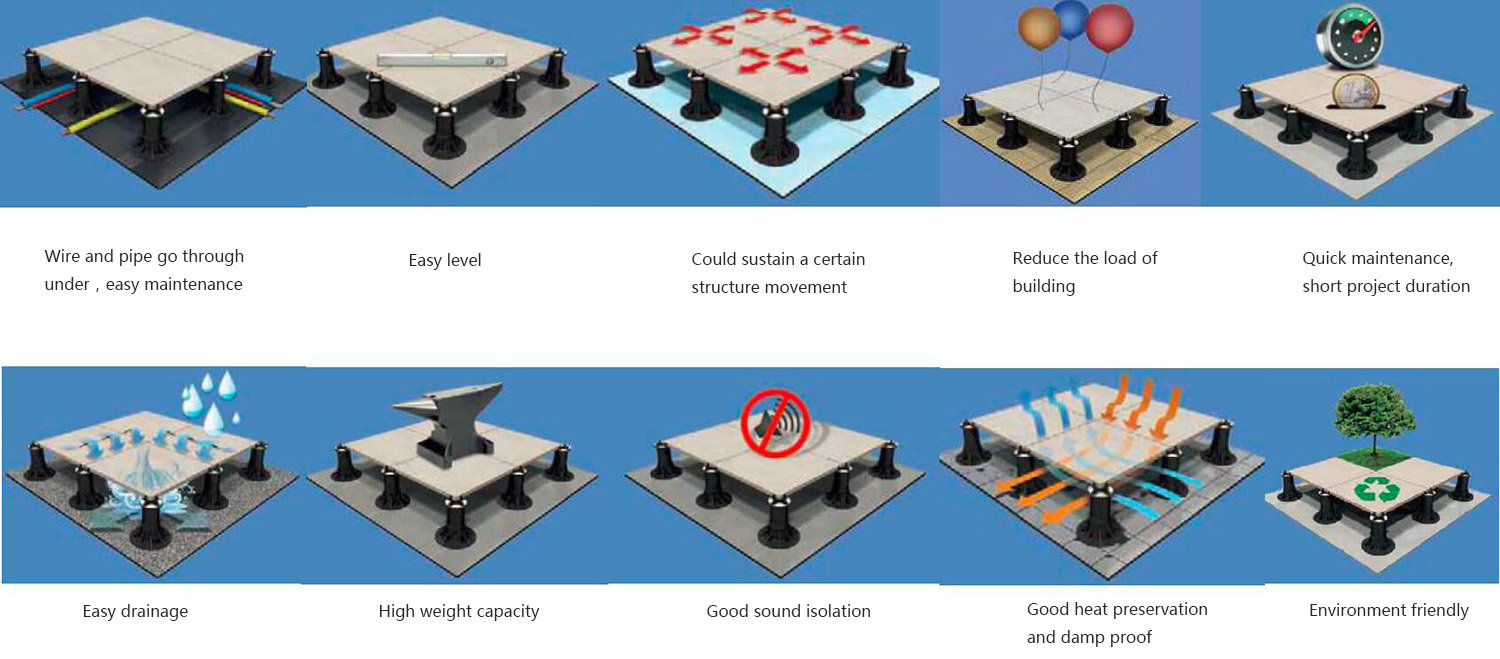

Pedestal System Advantages
